| Material | Monocrystalline Silicon |
| Product Dimensions | 41.8″L x 20.9″W x 1.38″H |
| Item Weight | 56.4 Pounds |
| Efficiency | High Efficiency |
About this item
- 【Superior Generation & Long-Term Warranty】The Premium Kit will deliver a daily output of 2-2.5kWh (varies with sunlight) using 100% EL-tested Grade A+ Solar Cells at 22.5% efficiency.

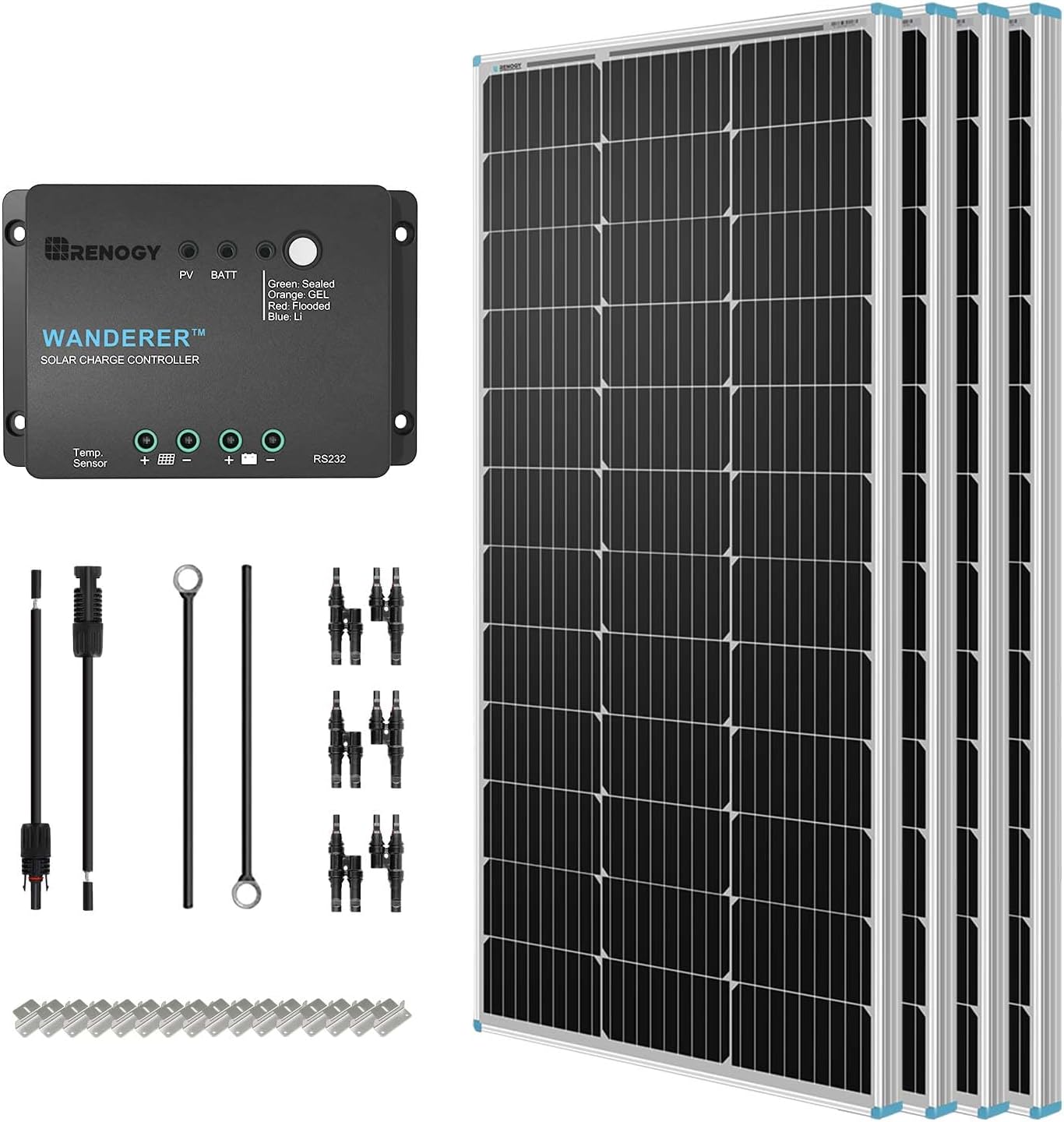

- 【Sturdy & Easy Setup】With a robust 3.2mm low-iron glass surface and a wider 35mm aluminum alloy frame, the solar panels endure high wind (2400Pa) and snow loads (5400Pa). The Premium Kit includes panels with pre-drilled holes, Z brackets, Y branch connectors, and ready-to-use wiring for easy installation.
- 【Efficient MPPT Technology】’s certified MPPT charge controller boasts 99% tracking efficiency and 98% peak conversion efficiency, outperforming traditional PWM controllers by 30%. The included temperature sensor adjusts input voltage based on battery temperature, preventing under-charging and overcharging.
- 【Complete System Safety】Beyond the comprehensive protection ensured by the MPPT charge controller, In-line and ANL fuses offer overcurrent protection for solar panels, controller, and battery. Wide-diameter cables further reduce power loss and the risk of overheating, providing an additional layer of safety.
- 【Monitor & Modify from Your Phone】Effortlessly monitor your system with the BT-1 Bluetooth module (RS232). It pairs with the controller, offering real-time data on your controller, battery, and load. Adjust controller parameters, such as boost voltage, through the DC Home App. Enjoy a signal range extending up to 82 feet (25m).
- Max Battery Voltage: 32V
